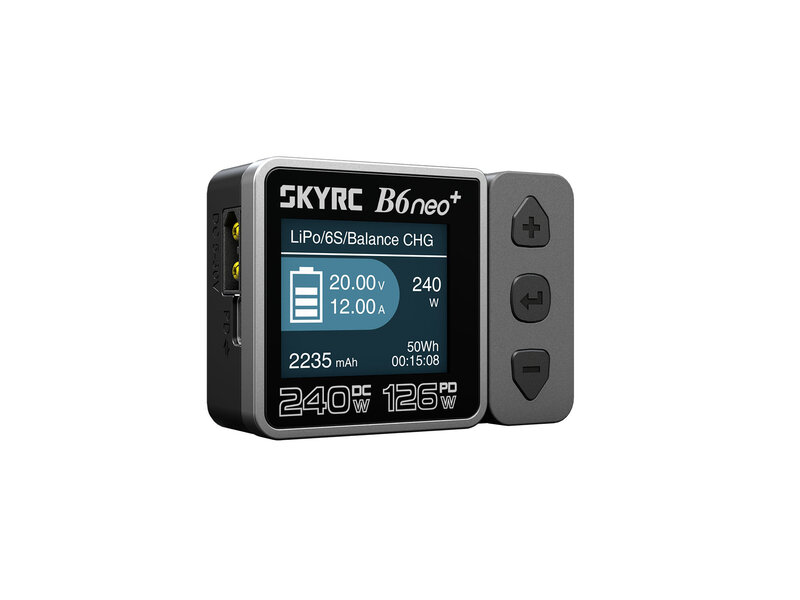

SkyRC B6neo+ LiPo Charger Grey 1-6s 10A 126W PD/DC

SkyRC / SK-100211-02 / B6neo+ LiPo Charger Grey 1-6s 10A 126W PD/DC

The SkyRC B6neo+ is the next generation of the proven B6neo, offering even higher performance, intelligent charging functions, and a compact, modern design. With a maximum charging power of 240W (DC) and an impressive 126W via PD 3.1, the B6neo+ is one of the most powerful chargers in its class. With new features and the revolutionary reverse charging function, the B6neo+ sets new standards in charging efficiency and versatility perfect for RC enthusiasts, drone pilots, and model builders who rely on fast and reliable charging times.

Features:

• 240W DC charging power
• Compact pocket-size design
• Up to 4x faster charging times than the B6V2
• With PD3.0 fast charging & PD reverse charge (up to 100W)
• Very quiet thanks to smart fan
• Various safety mechanisms

Specifications:

• Input Voltage: DC: DC: 5-30V / PD3.0/3.1: 5-28V
• Charge Power: DC: 240W / PD: max. 126W
• Discharge Power: max. 16W (6S, 4.2V/S) / max. 100W (PD 3.1)
• Charge Current: 0.3 - 10.0A
• Discharge Current: max. 0.6A
• Balance Current: max. 600mA
• Battery Types: LiPo/LiFe/LiIon/LiHV: 1-6S / NiMH/NiCd: 2-15S / Pb: 3S/6S/12S
• Weight: 82g
• Dimensions: 70x50x31mm

Delivery:

• 1x B6 NEO+ Charger
  1x Manual

MANUAL

Specifications:



Size and Weight





Shell material: PC-ABS V0
Size: 70*50*31mm
Weight: 82g



Display

Display Type: TN
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128x160 Pixel
Number of Colors: 262K



Power

DC Input Voltage: 5-30V
PD3.0/3.1: 5-28V

Charger power:
DC: 240W
PD: Max. 126W

Discharge power:
Max. 16W based on 6S(4.2V/S)

Reverse PD Discharging Power: Max.100W

Battery

Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 2-15cells
Pb: 3S/6S/12S



Charge and Discharge

Charge current

LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.3-10A

Discharge current

LiPo/LiFe/LiIon/LiHV: Max. 0.6A

Balance current

LiPo/LiFe/LiIon/LiHV: Max. 600mA

Operation

LiPo/LiFe/LiIon/LiHV: Balance Charge, Charge, Discharge, Reverse Discharge, Storage

NiMH/NiCd: Charge, Re-peak, Reverse Discharge

Pb: Normal, AGM Charge, Cold Charge, Reverse Discharge
