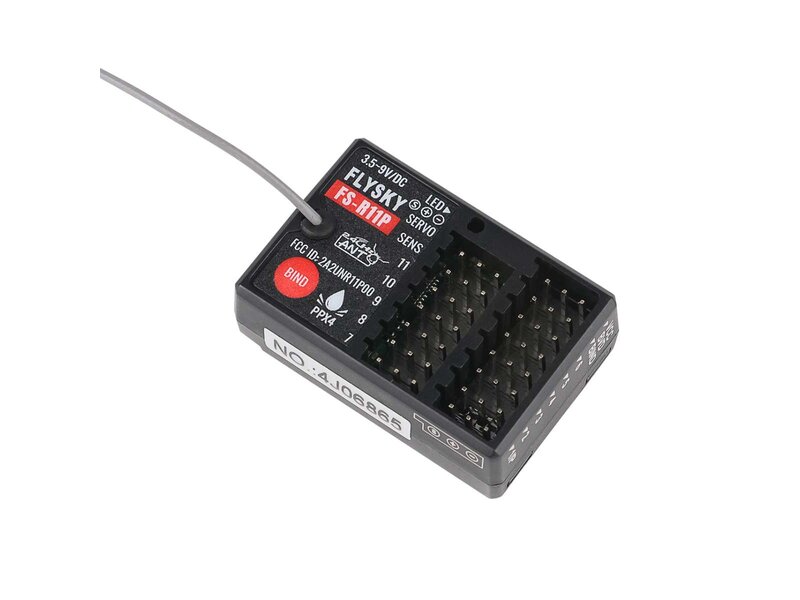

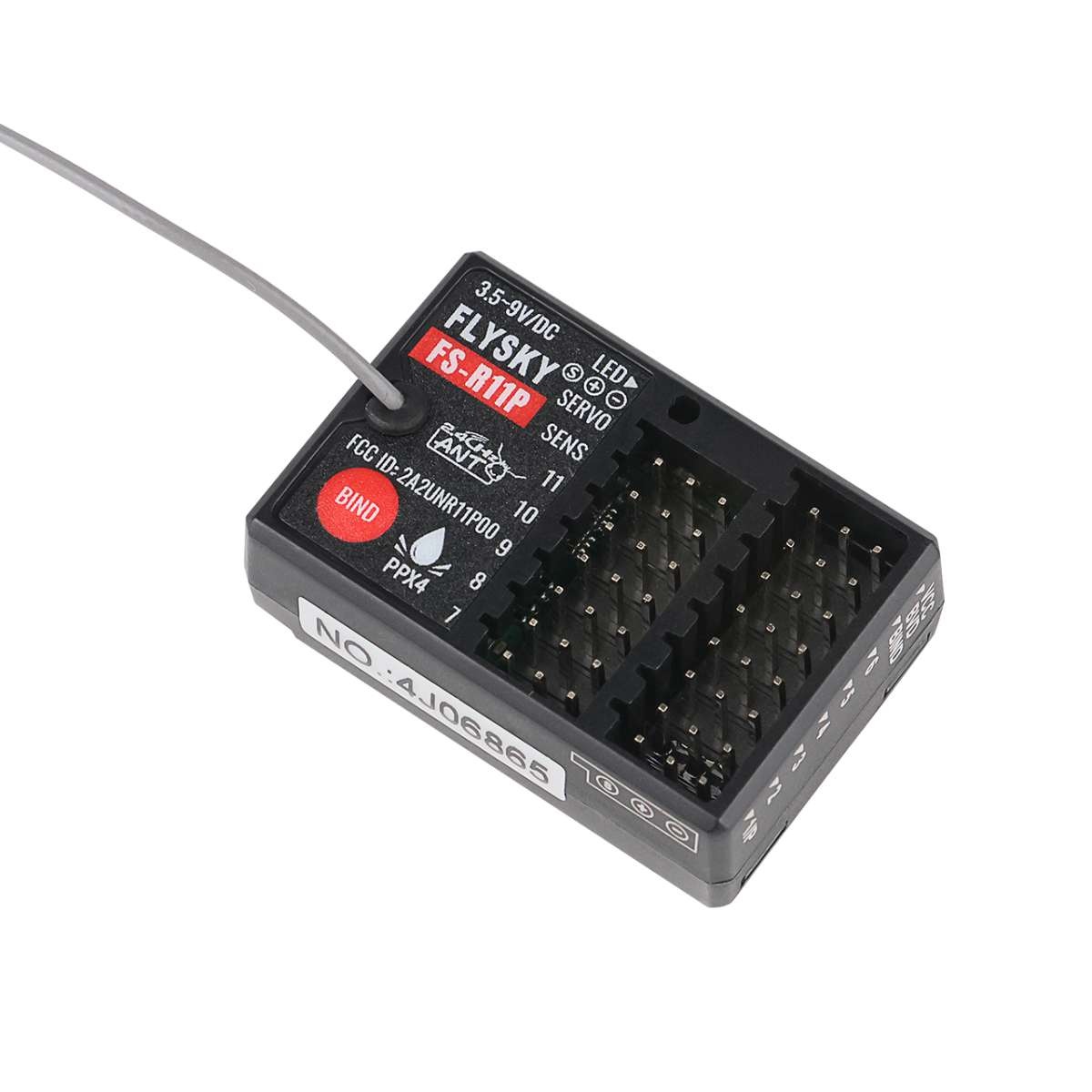

Flysky R11P ANT 11 CH Receiver

Flysky / FS098 / R11P ANT 11 CH Receiver

The FlySky FS-R11P is a compact 11-channel ANT receiver for RC cars and boats. It supports PWM, PPM, i-BUS, S.BUS and i-BUS2, and its bidirectional ANT link enables telemetry and model setup directly via compatible FlySky transmitters (e.g., G11P / G7P+).

Specifications:

• Model: FS-R11P
• Compatible transmitters: FlySky radios with ANT protocol (e.g., G11P, G7P+)
• Application: Car / Boat
• Channels: 11
• RF / Protocol: ANT
• Transmit power (EU): <20 dBm
• Resolution: 4096
• Outputs: PWM / PPM / i-BUS / S.BUS / i-BUS2
• Input voltage: 3.5 – 9 V DC
• Antenna: External single antenna
• Firmware update: Supported
• Water / splash protection: PPX4
• Dimensions: 37.0 × 25 × 13.3 mm
• Weight: 10 g
• Operating temperature: −10 °C to 60 °C
• Humidity: 20% – 95% RH
