Hudy H109301 - Set-Up Station for 1/10 Touring Cars

Nog niet gewaardeerd | Schrijf je eigen review
Hudy
€ 192,90 Incl. btw

Hudy - H109301 - Set-Up Station for 1/10 Touring Cars

Op voorraad 1 stuks
Artikelnummer:
H109301

Hudy - H109301 - Set-Up Station for 1/10 Touring Cars

click to enlarge

click to enlarge

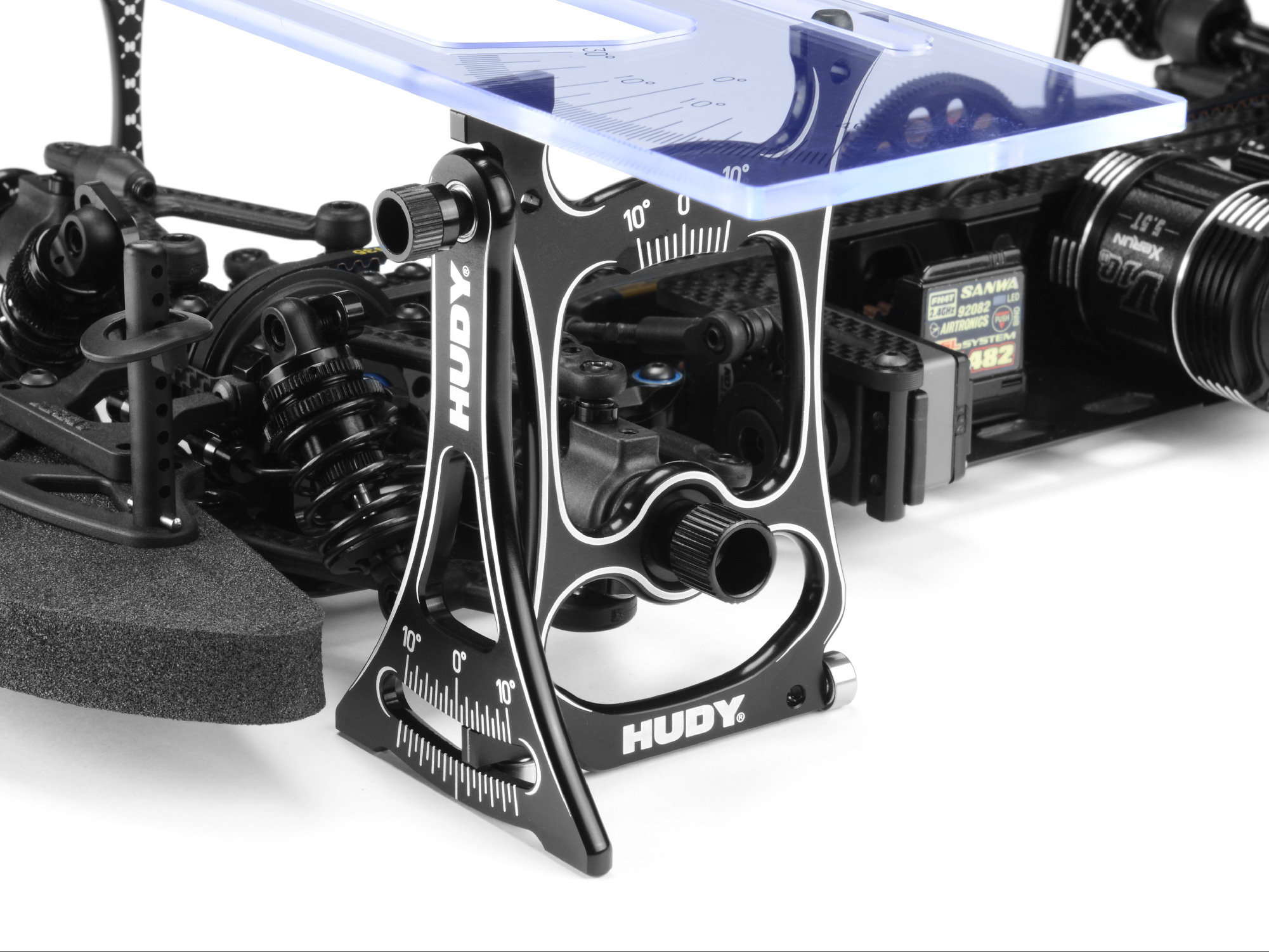

The HUDY Set-up Station for all 1/10 electric & nitro touring cars is a vital set-up tool used for a complete suspension geometry adjustment. The Set-up Station is used to measure and adjust the front & rear toe, caster, camber, camber gain and steering throw symmetry.

HUDY Set-up Stations have become an industry standard after more than 30 years as the most popular set-up tools in the RC world. Having the correct car setup is one of the most important factors in winning races and that is why HUDY Set-up Stations are used by the World Champions.

The stands are CNC-machined from high-grade Swiss 7075 T6 aluminum, black coated and laser engraved from both sides. The upside measure plate used for toe/steering adjustment is CNC-machined from tough acrylic plastic and features printed scratch resistant scales.

The Set-up Station includes aluminum assembly nuts for quick and straight-forward "one screw" assembly. The 12 high-precision ball-bearings ensure backlash-free & wobble-free operation and ultra-precise set-up adjustments.

The entire system is very small, light, and well-designed for easy transport to the track.

This universal Set-up Station will fit all standard 1/10 electric and nitro touring cars.

Set-up Station is used for measurement and adjustment of:

  • Camber & camber gain
  • Caster
  • Front and rear toe
  • Steering throw symmetry

Main features:

  • Must-have set-up tool for a complete suspension geometry adjustment
  • Quick and straight-forward "one screw" assembly/disassembly
  • Backlash-free, wobble-free mounting
  • Fully ball-bearing equipped set-up stands (12 high-precision ball-bearings)
  • Ultra-smooth, ultra-precise movement and operation
  • CNC-machined from high-grade premium Swiss 7075 T6 aluminum
  • CNC-machined upside measure plate form tough acrylic plastic
  • All components have prevision engraving for instant & reliable readings
  • Carrying box with foam inserts for safe storage & transportation
  • High-quality, super precision & long life
  • Industry standard for set-up tools since 1992

Includes:

  • 4 set-up stands with installed ball-bearings
  • 4 camber gauges (triangular) with installed ball-bearing
  • 4 assembly nuts
  • 4 wheel nuts
  • 1 acrylic upside measure plate
  • Set-up Book
  • Carrying box with foam inserts for smart & safe storage and transportation

click to enlarge

click to enlarge

click to enlarge

click to enlarge

click to enlarge

click to enlarge

click to enlarge

click to enlarge

click to enlarge

click to enlarge

click to enlarge

click to enlarge

click to enlarge
