ReveD SPM Titanium Servo Screw (2pcs)
ReveD / RT-001 / SPM Titanium Servo Screw (2pcs)

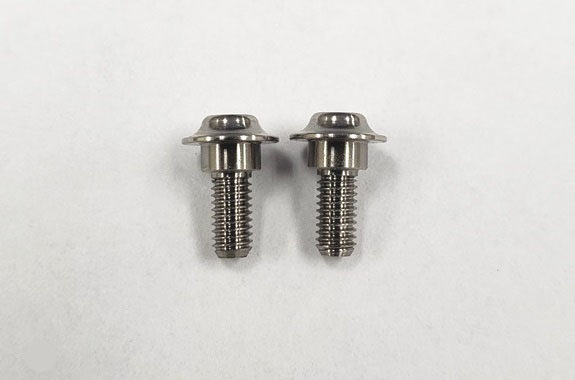

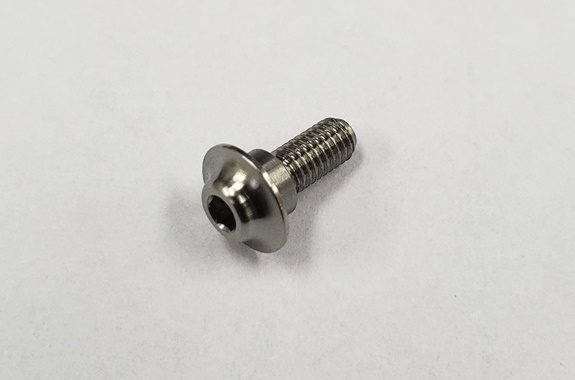

The SPM (Super Precision Machine Cut) titanium servo screw.
Using a lightweight / high-rigidity titanium material, we have designed a special screw for mounting the servo squarely in the mounts with a high-precision stepped profile.
When fixing the servo, a built in collar with a diameter of 4.3mm is provided at the base of the M3 screw to facilitate perfect positioning of the servo with ease.
In addition, the shape of the screw head has a base with a diameter of 7mm, eliminating the need to use washers.
The beautiful design is another highlight of these screws for dressing up your machine.
Please try SPM Titanium Servo Screws, which are not only lightweight / high rigidity made of titanium material, less prone to wearing and sharp appearance.
Dimensions of each part:
- Screw head Pedestal diameter: Φ7.0mm
- Root cylindrical part with M3 screw: Diameter Φ4.3mm, length 2.0mm
- M3 screw length: 6.0mm
*Check the dimensions of your servo beforehand.
