WRAP-UP Next 0681-FD - High Upper Extension for GX knuckle / Purple

WRAP-UP Next - 0681-FD - High Upper Extension for GX knuckle / Purple

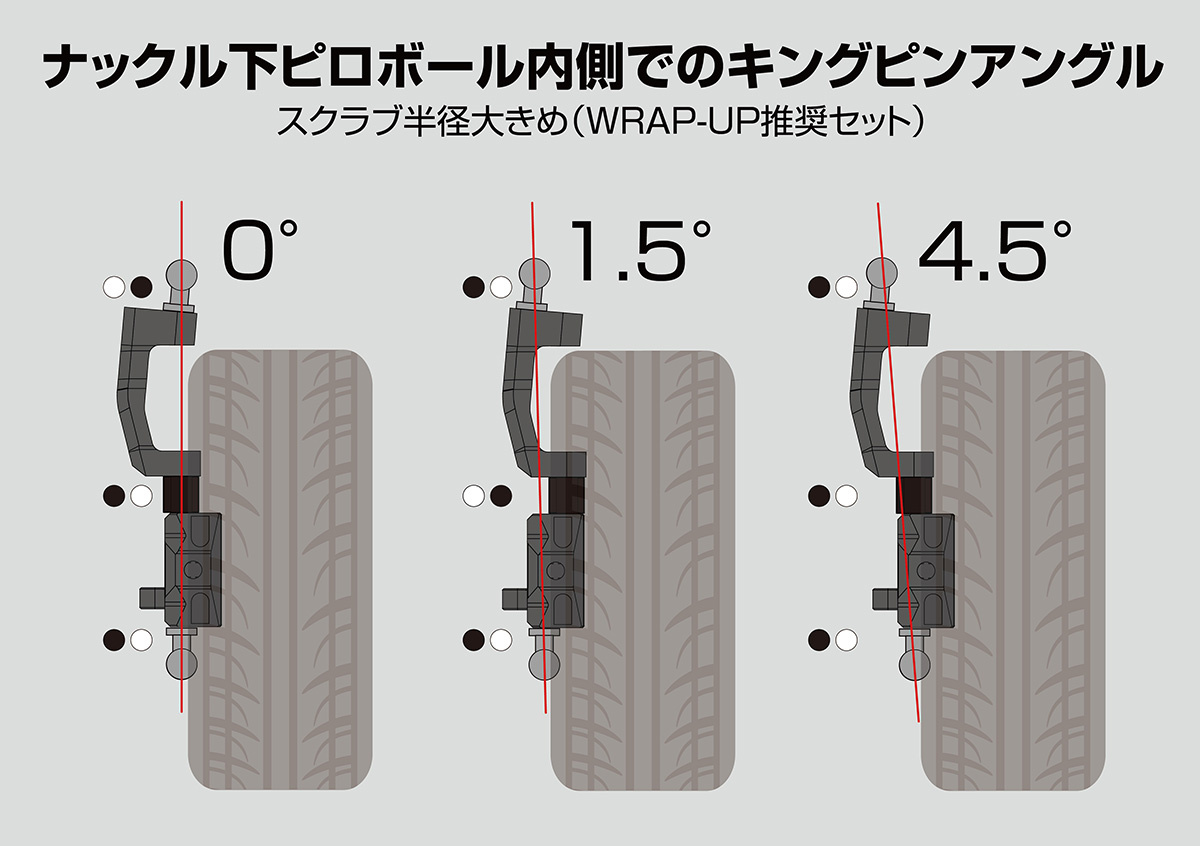

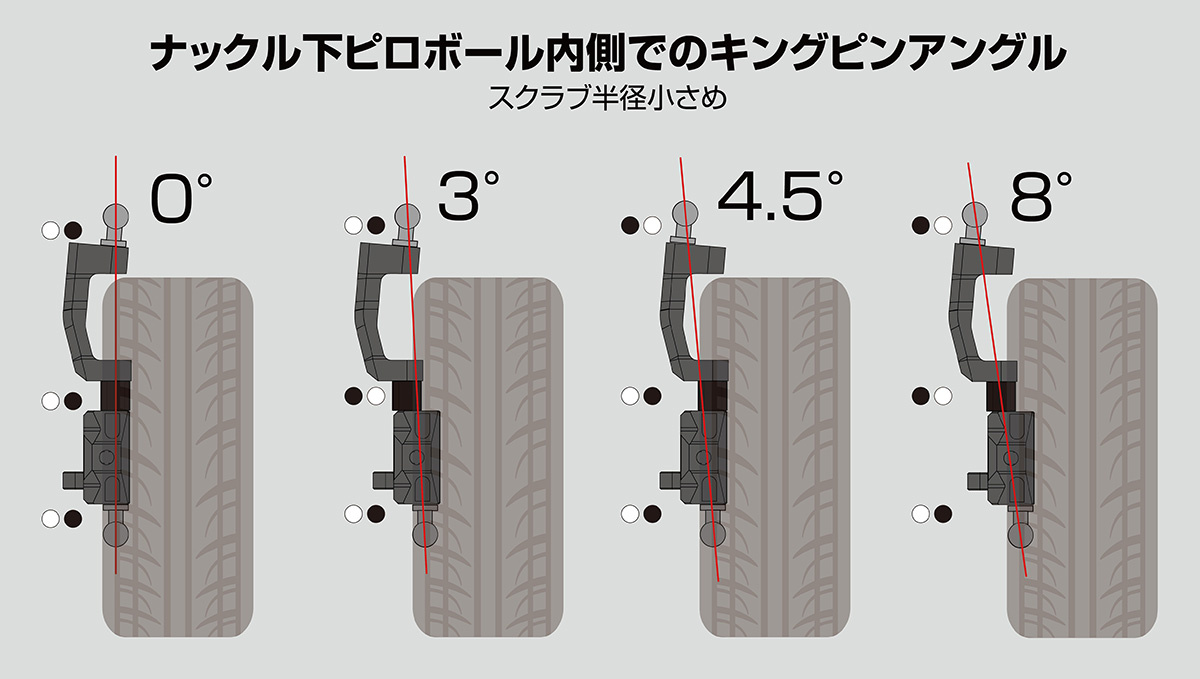

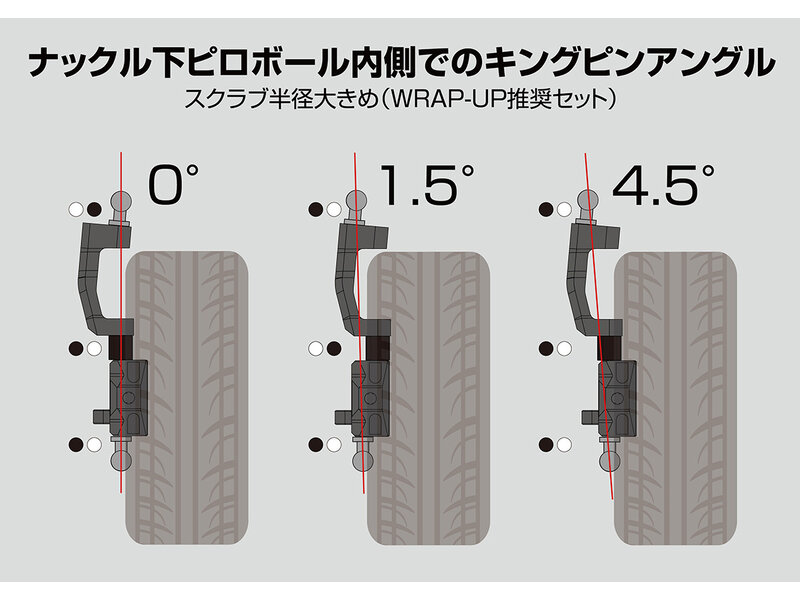

High upper extension compatible with GX front knuckle series. With a special design to avoid tire interference, the kingpin angle can be set from 0 degrees to 1.5/4.5/8 degrees.
This extension can also be installed on the FSG suspension, creating a higher front and rear suspension.
By tilting the pillow ball mounting part by 5 degrees, he optimized the ball's range of motion when setting the camber angle.
When using GX knuckles, use the included 6mm spacer in between. *You can adjust the height to your preference using M3 general-purpose spacers.
When using FSG suspension, do not use a spacer and attach it directly to the hub carrier.
