Hobbywing / 30120401 / QuicRun Fusion 1800KV for Crawler
Hobbywing / 30120401 / QuicRun Fusion 1800KV for Crawler

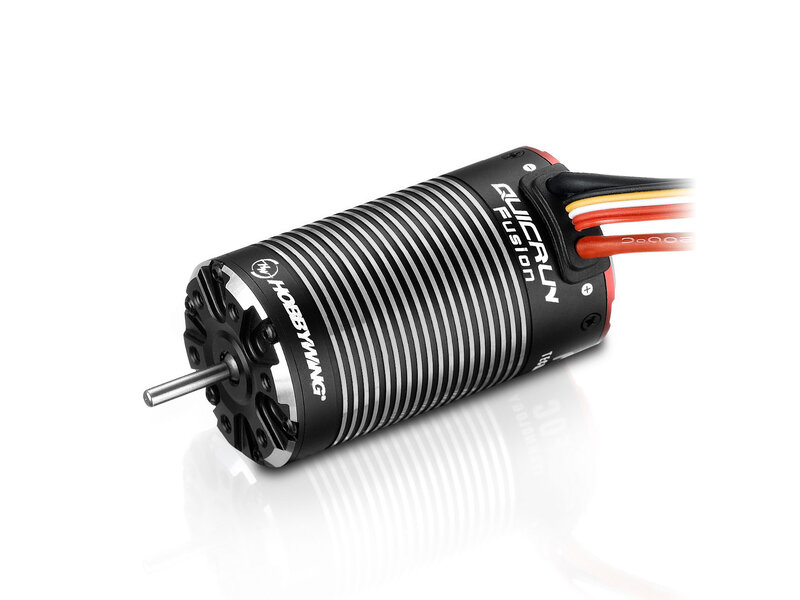

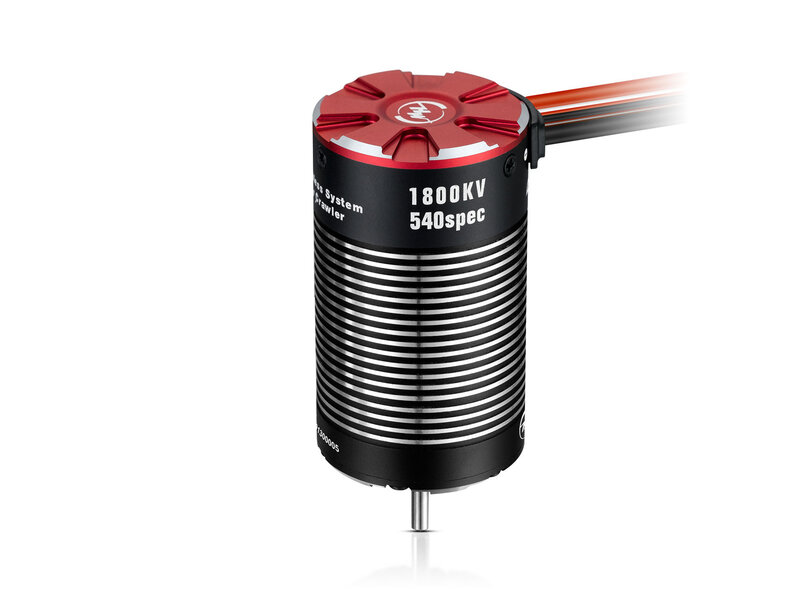

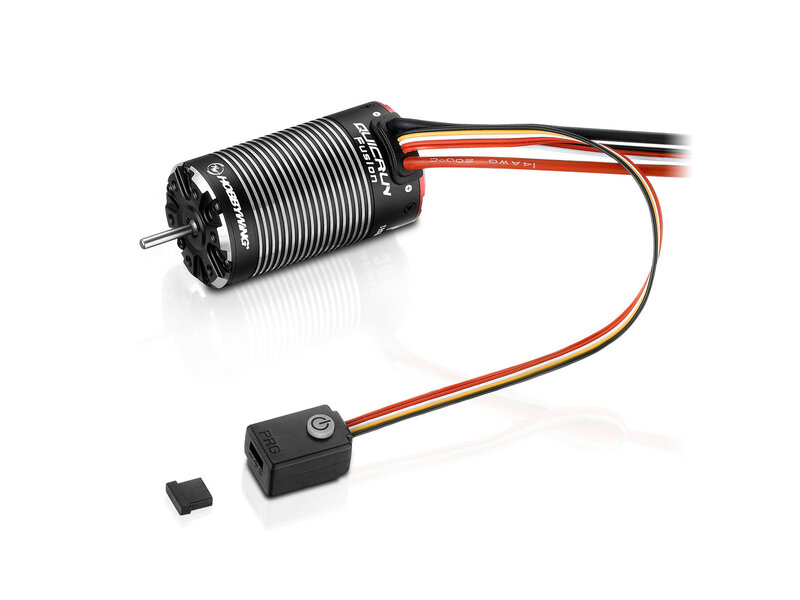

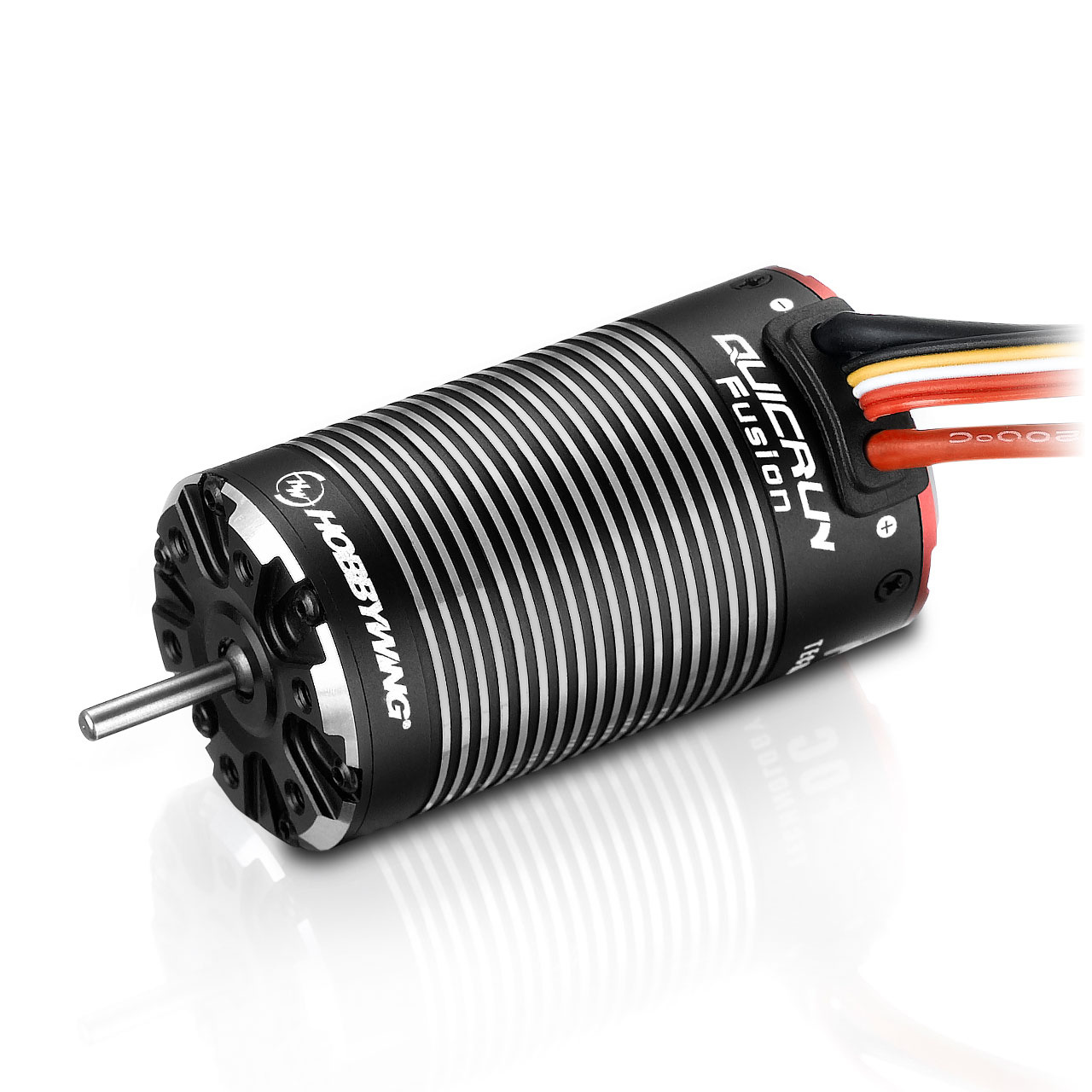

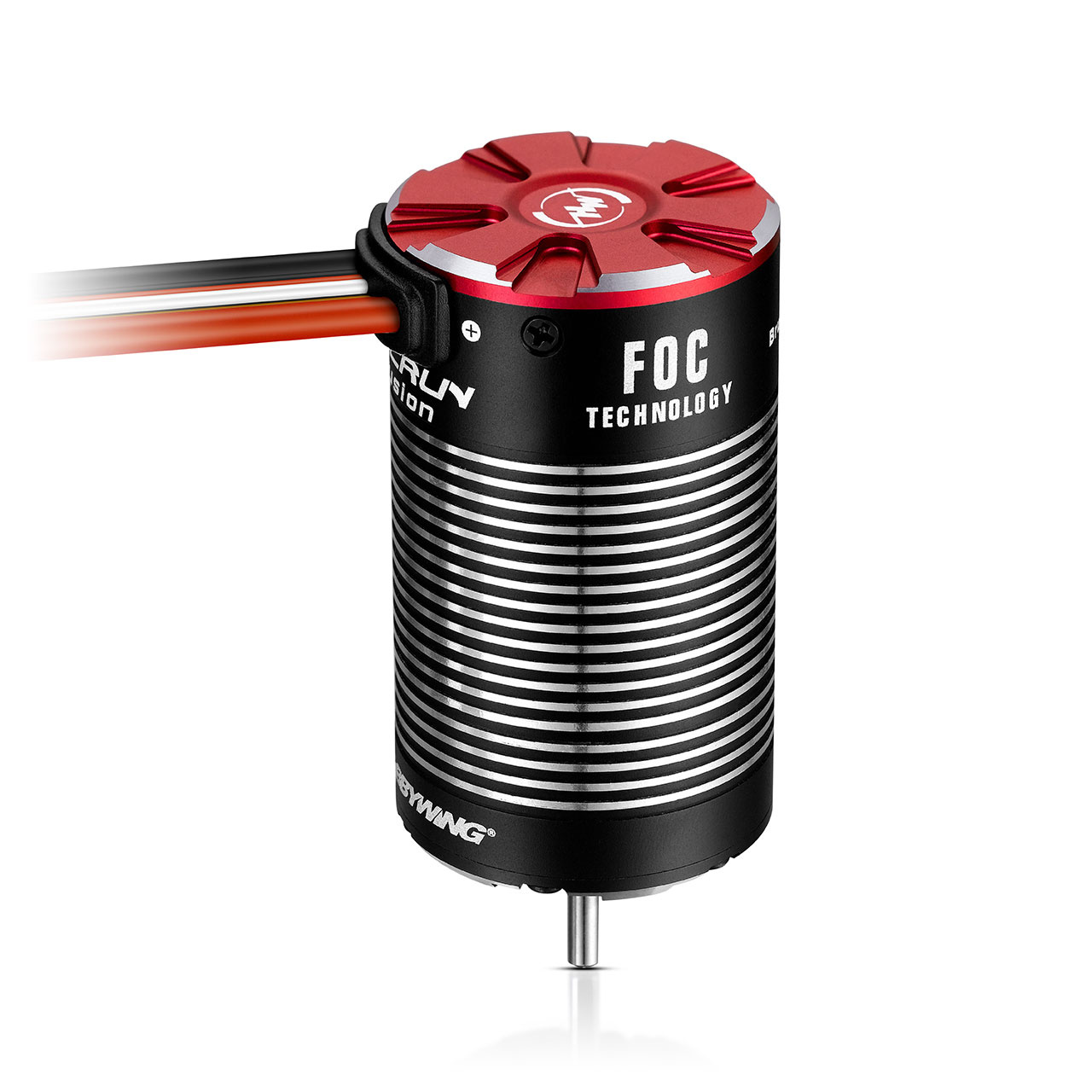

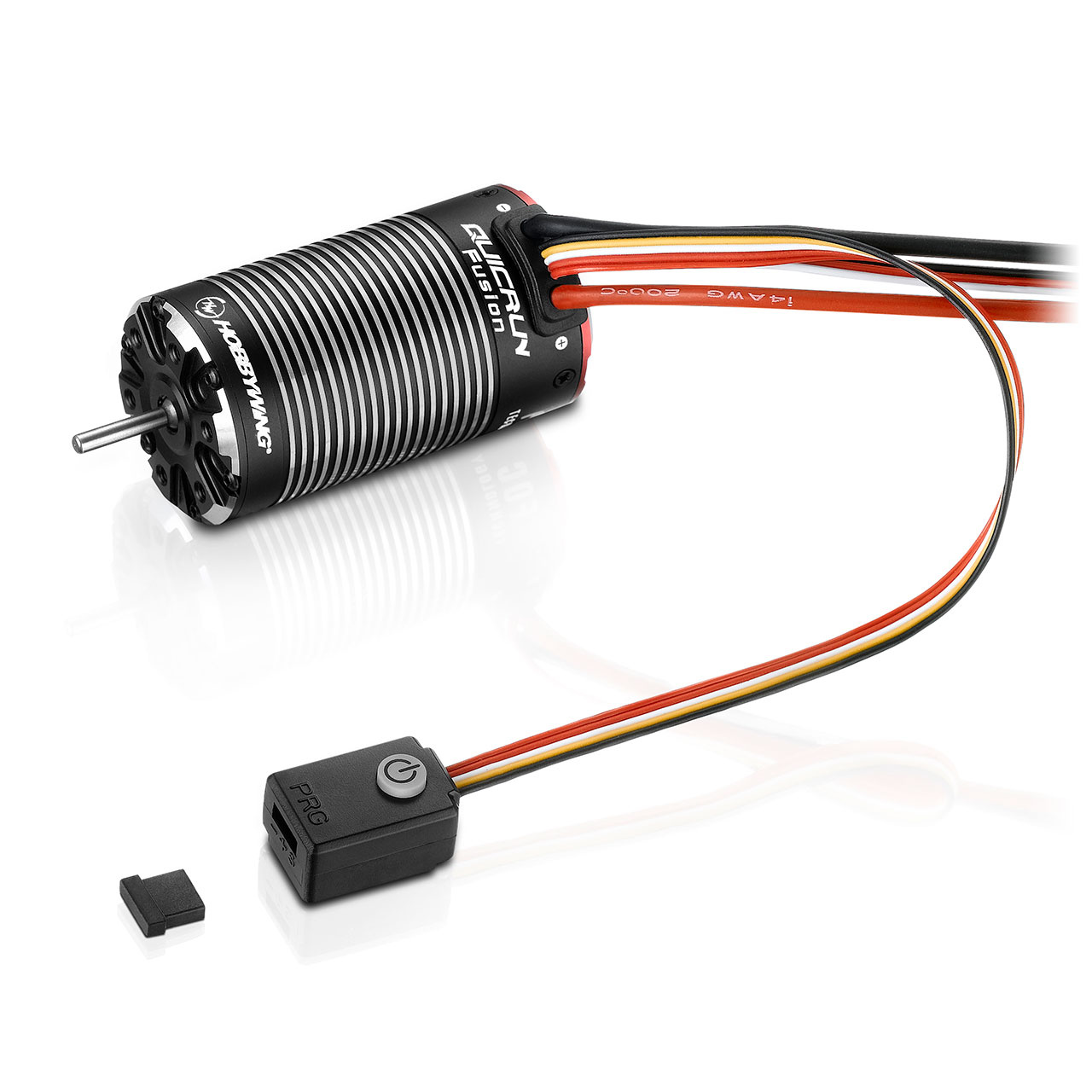

The future is here, because with the QuicRun Fusion Hobbywing introduces the first motor for 1/10 rock crawlers with an integrated ESC.
Sometimes there is only limited space inside the car and little scope to accommodate the various cables properly. But this is finally over - just as big as a typical 550 motor and with a weight of 210g You would not notice that motor and ESC are combined here. Thanks to the intelligent torque and speed control, a rock crawler can easily adapt to any situation. This combo is supported by an outstandingly waterproof and dustproof jacket. So the fun will never stop. Even the electronic switch is protected accordingly. This technology is called FOC (Field-Oriented-Control) and is responsible for this great control feeling. The sinusoidal motor control keeps the ESC and motor cooler and You are able to achieve a smooth, quiet motor operation.
Features:
- 2in1: Motor and ESCcombined in one electronical part
- Compact design ideal for gaining space and reducing weight
- Strong torque even at slow speed
- Waterproof and dustproof
- Powerful built-in BEC with voltage switching function
- Various safety mechanisms against: undervoltage, overheating, loss of gas, etc.
- Programmable with the LED programming box
Technical Specifications:
- Type: Brushless FOC Sensored
- Cont./Peak Current 40A/160A
- Cells: 2s-3s LiPo, 6s-9s NiMH
- BEC: 6V/7.4V with 4A
- Poles: 4
- Motor kV: 1800kV
- Outer Diameter: 36mm
- Length: 64mm
- Shaft Diameter: 3.175mm
- Shaft Length: 16mm
- Waterproof: Yes
- ESC Programming via:

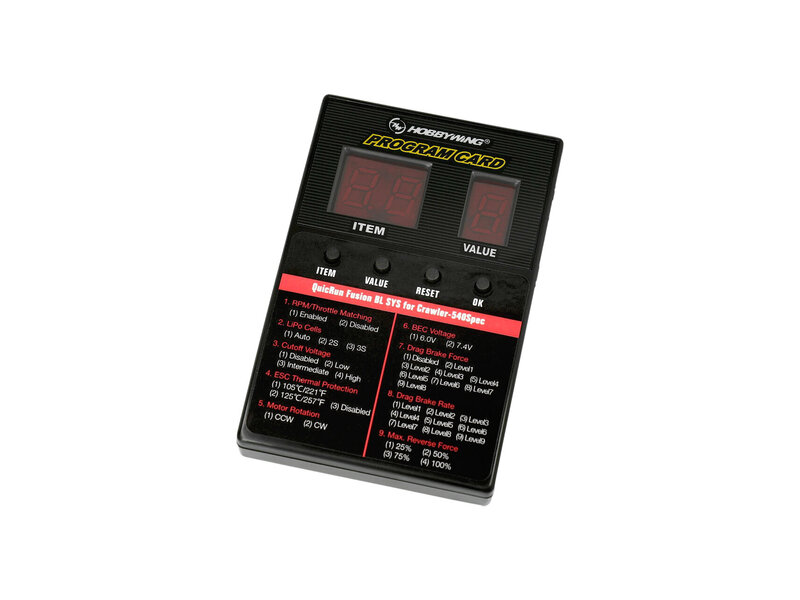

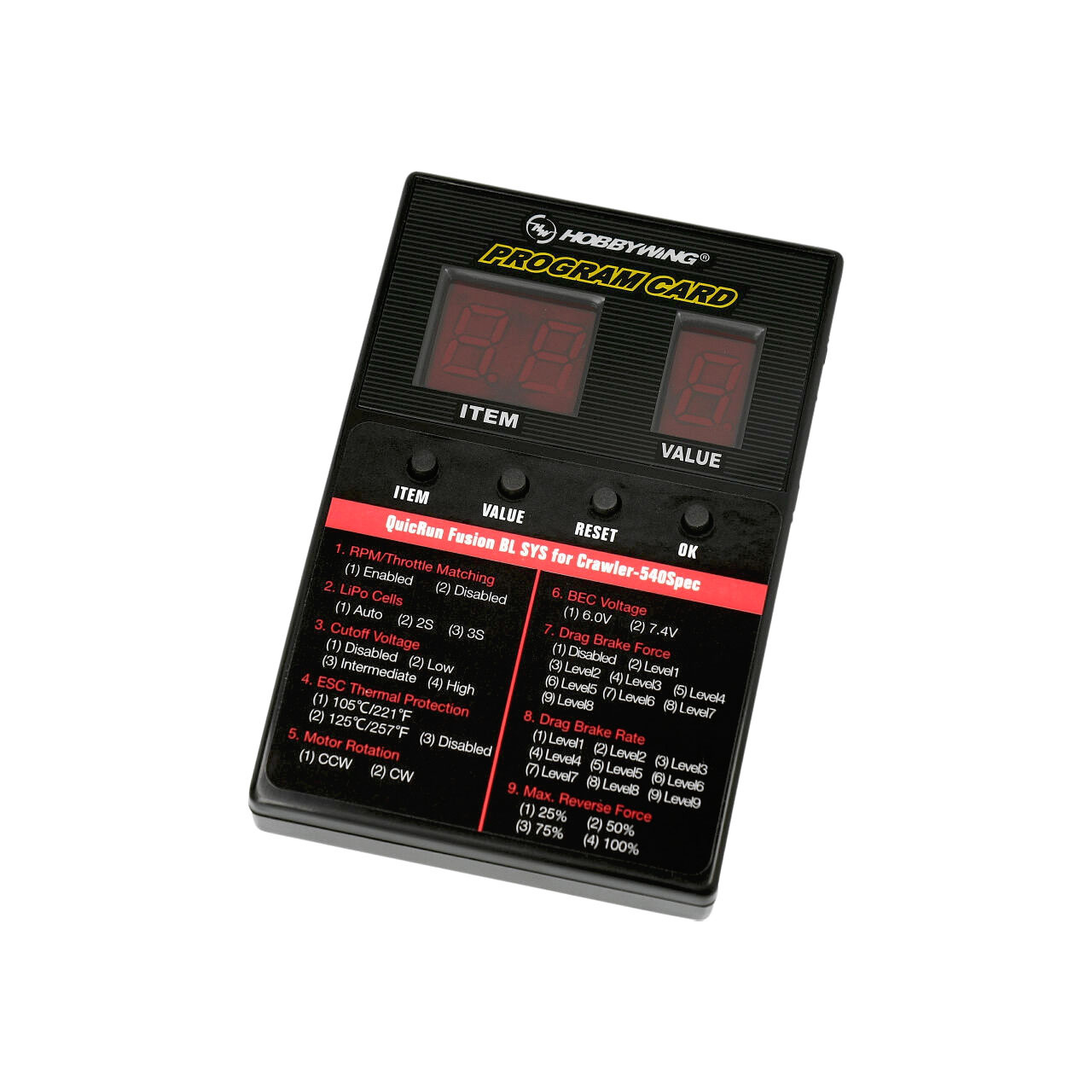

- LED Program Box included
- Independent Programming Interface (Switch Position)
- Weight: 210g
- Application: 1/10 Rock Crawler
Delivery:
- 1x QuicRun Fusion BL SYS
- LED Program Box
