Hobbywing / 30120500 / QuicRun Fusion Pro Elite 2300KV 2-4S for Crawler
Hobbywing / 30120500 / QuicRun Fusion Pro Elite 2300KV 2-4S for Crawler

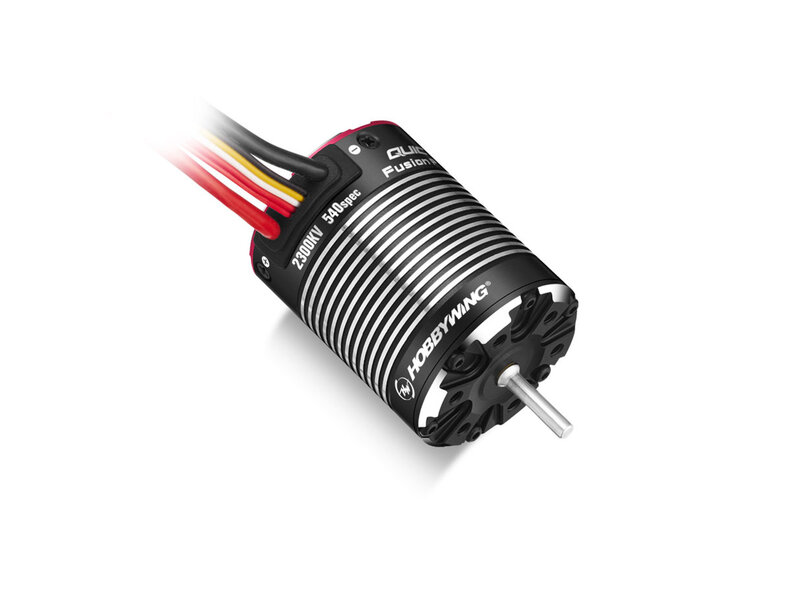

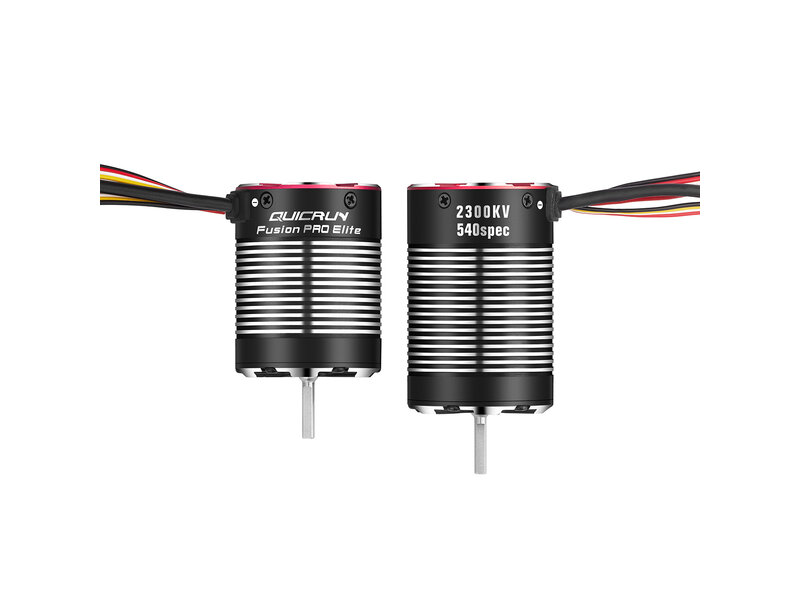

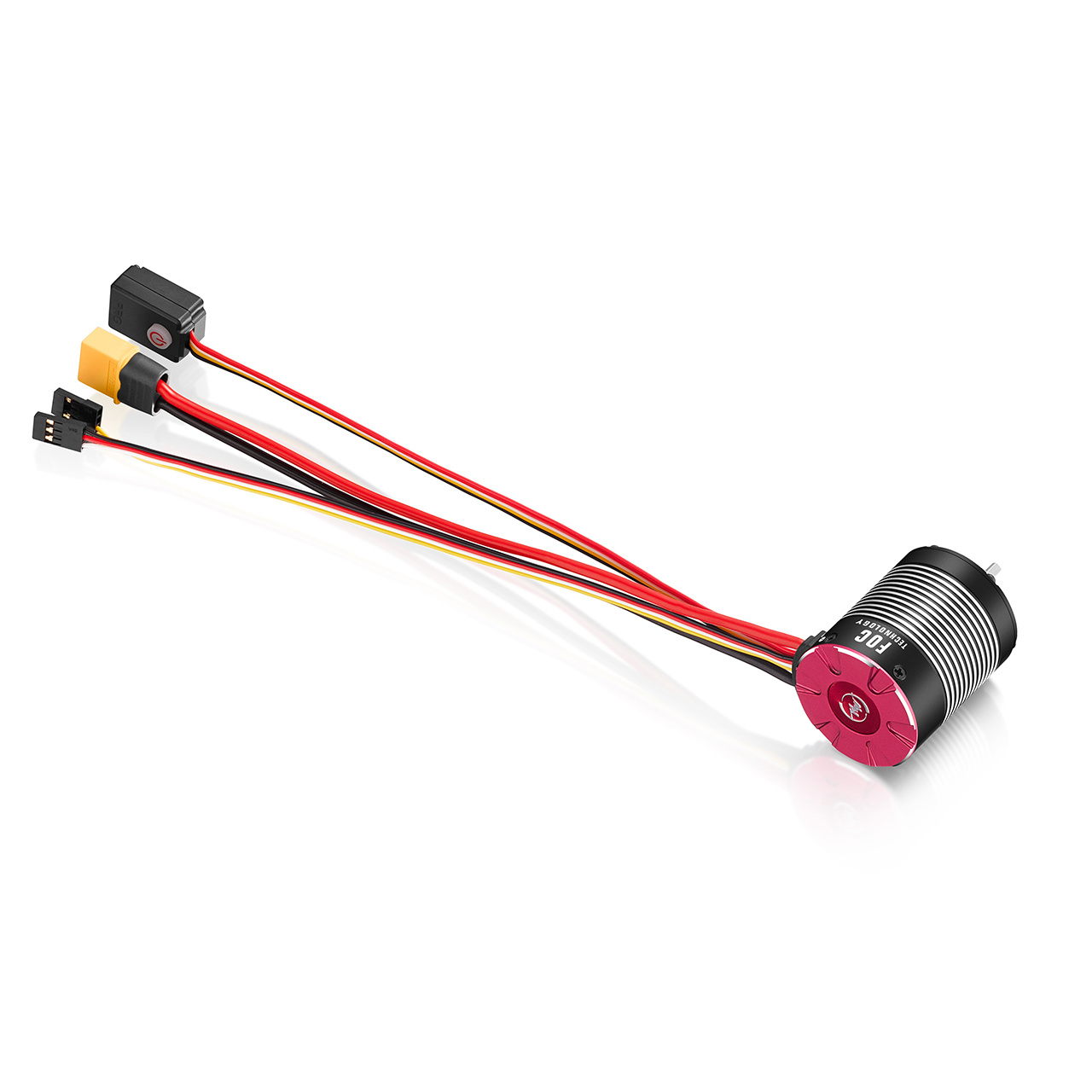

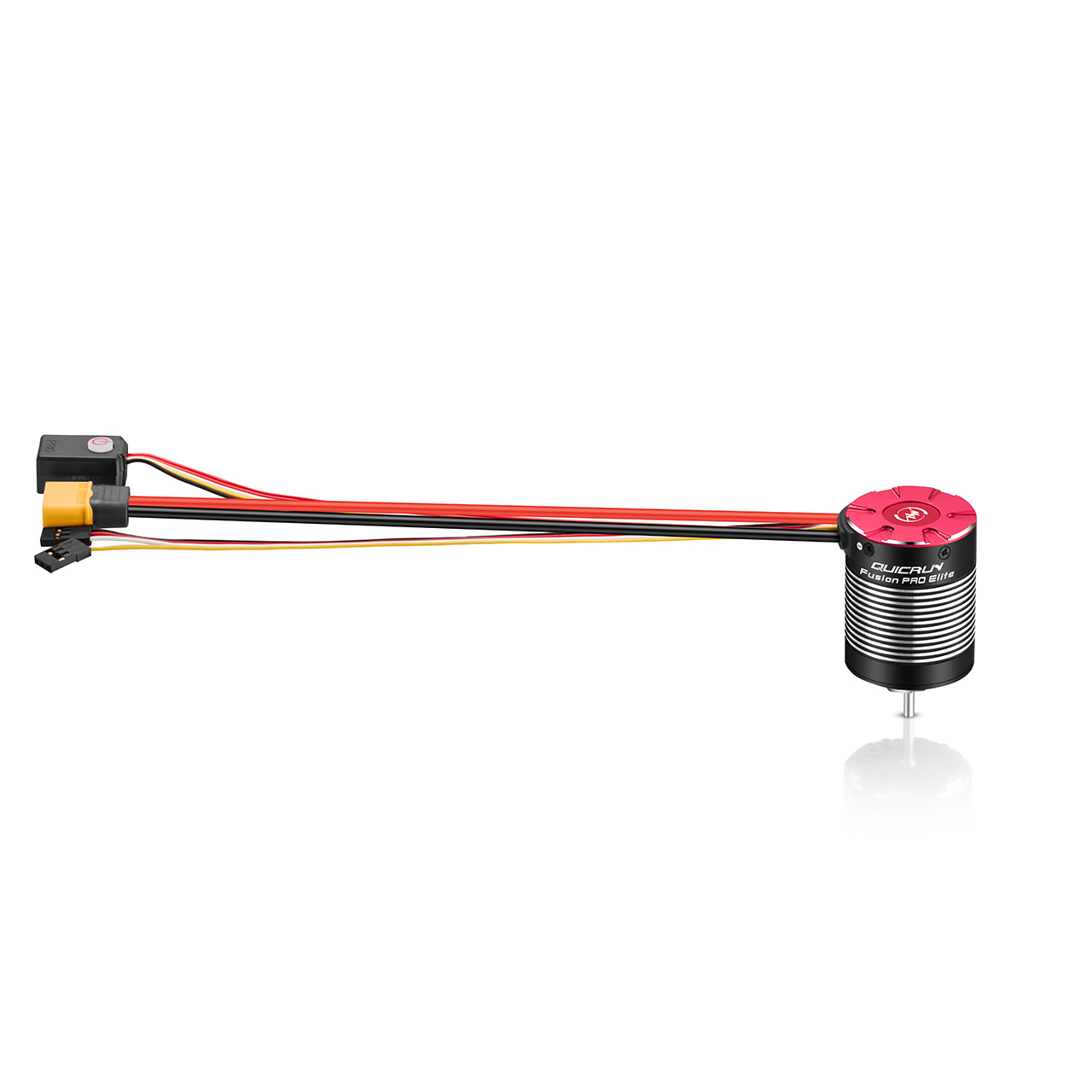

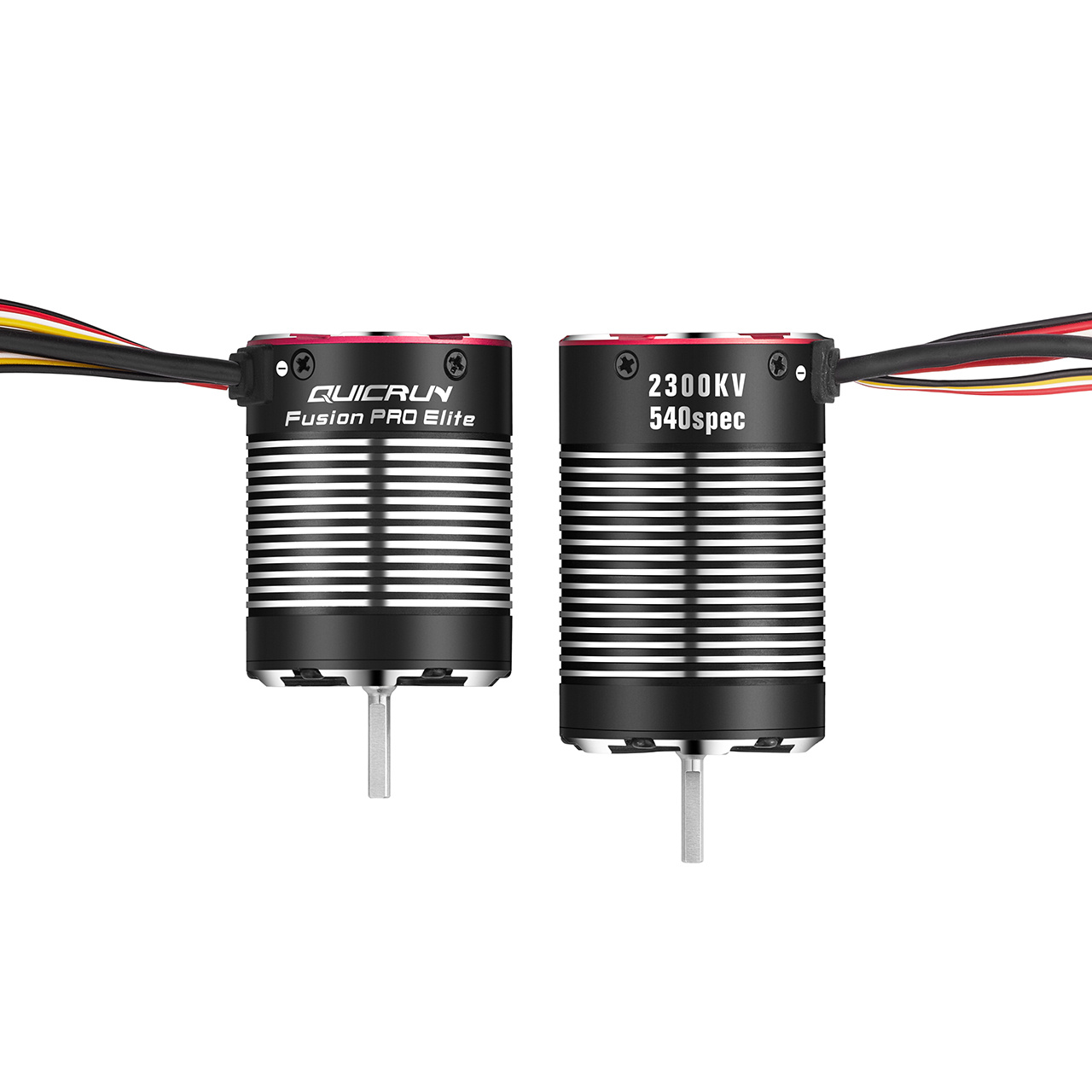

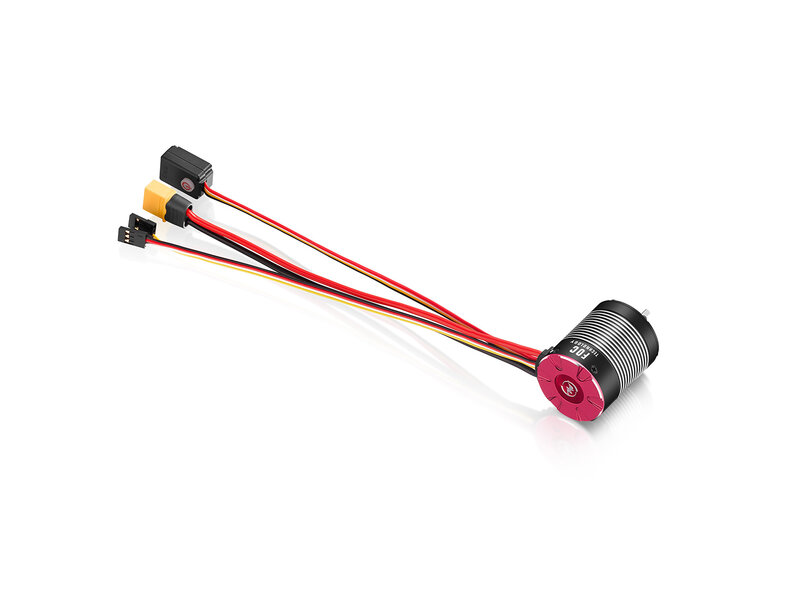

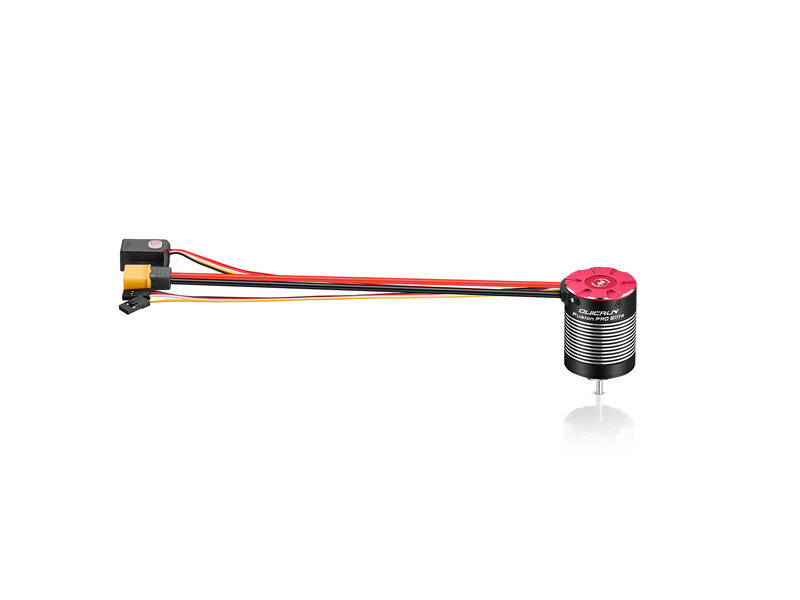

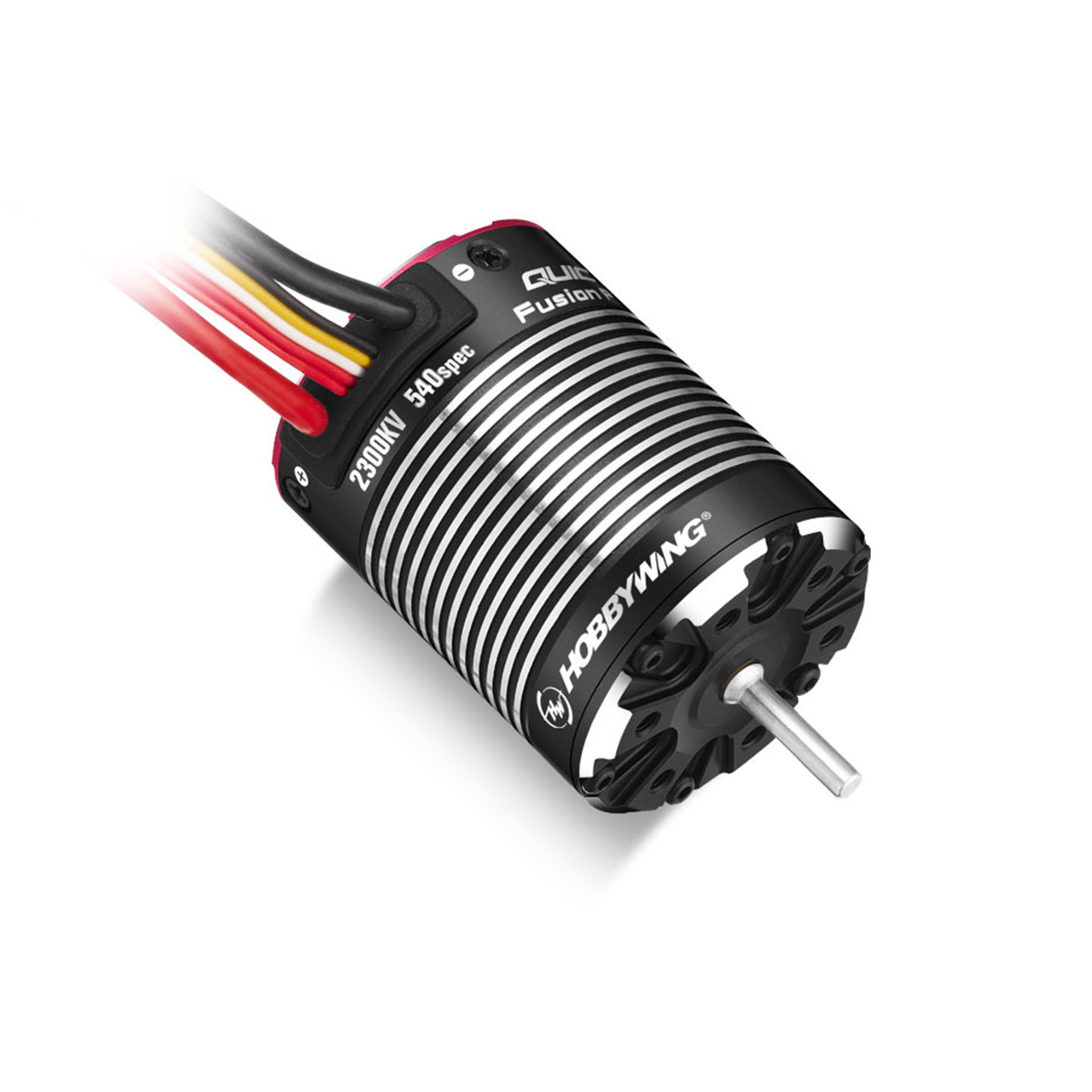

The Hobbywing QuicRun Fusion Pro Elite is the latest generation of the popular Fusion series, combining motor and ESC in an ultra-compact 2-in-1 design. At only 48.5mm in total length, it is 9.5mm shorter than the QuicRun Fusion Pro version and even 1.3mm shorter than the AXE 540.
Thanks to FOC drive technology (Field-Oriented Control), the Fusion Pro Elite delivers extremely strong low-speed torque as well as exceptionally smooth and quiet operation. This makes precise crawling and controlled driving possible even in demanding terrain.
The ESC supports 24S LiPo and provides a maximum continuous output current of 50A, ensuring stable and consistent power delivery without interruptions. Combined with intelligent torque management and closed-loop control for speed and power, the Fusion Pro Elite offers maximum control on any surface.
Features:
- 2-in-1 design: motor & ESC combined, only 48.5mm length
- 9.5mm shorter than the QuicRun Fusion Pro, 1.3mm shorter than the AXE 540
- FOC drive: powerful low-speed torque & quiet operation
- Maximum continuous current: 50A with 24S LiPo
- Intelligent torque & speed control for precise handling
- Drag Brake and other parameters adjustable in real-time via AUX channel
- 5 operating modes
- Fully waterproof & dustproof according to IP67
Technical Specifications:
- Type: Brushless FOC, Sensored
- Continuous / Peak Current: 50A / 150A
- Cells: 2-4S LiPo
- BEC: 6V / 7.4V / 8.4V @ 5A
- Length: 48.5mm
- Outer Diameter: 37mm
- Shaft Diameter: 3.175mm
- Waterproof: Yes, IP67
- Weight: 178.5g
- Application: 1/10 Crawler
Delivery:
- 1× QuicRun Fusion Pro Elite
- 1× User manual
