ReveD / D1-MK-B2 / RDX Multi-Select Front Knuckle Base L&R - 2mm offset
ReveD / D1-MK-B2 / RDX Multi-Select Front Knuckle Base L&R - 2mm offset

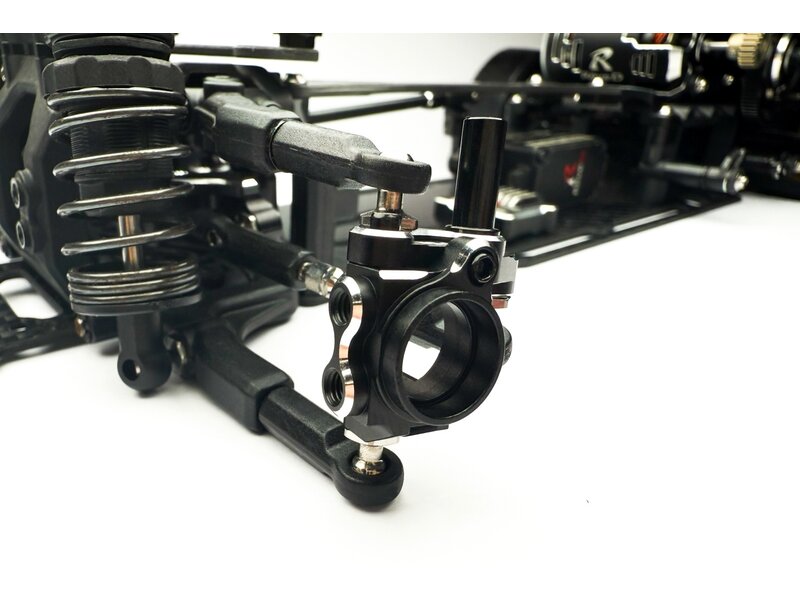

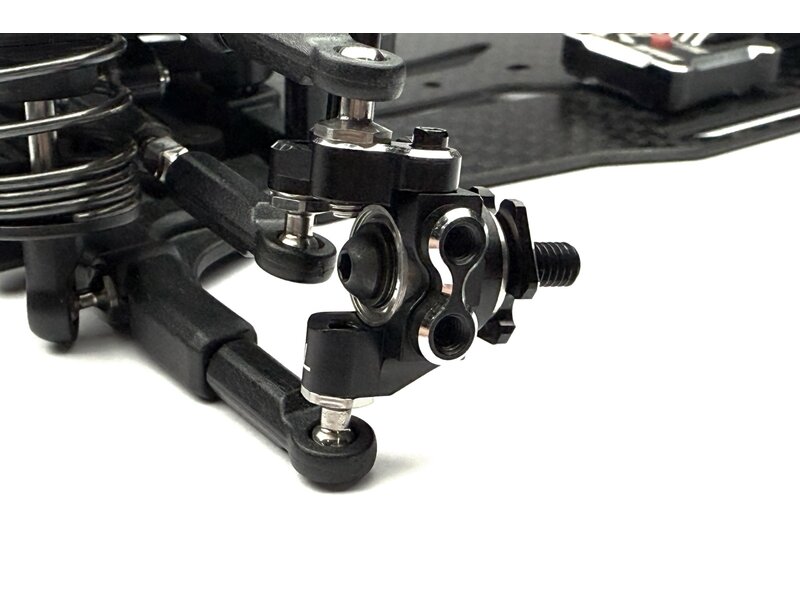

This is the base part of the aluminum multi-select front knuckle 2.0mm offset type for RDX!
By offsetting the bearing position 2mm toward the wheel center, the rotation axis moves closer to the center of the wheel, improving rotational precision.
This also reduces the load on the bearings and enhances front-end rolling performance at deep steering angles.
The knuckle body features a two-piece design with an upper-mounted plate. By swapping out the plate parts (HIKARU, AKIRA, Type US), you can fine-tune your setup to suit a variety of driving conditions.
* The product comes with one knuckle base part for each side and two M2 x 5mm cap screws for mounting the plate.
* A separate multi-select front knuckle aluminum knuckle plate is required for installation on the RDX.
Plate parts:
D1-MK-PH: RDX Muti-select Front Knuckle Plate (HIKARU)
D1-MK-PA: RDX Muti-select Front Knuckle Plate (AKIRA)
D1-MK-PU: RDX Muti-select Front Knuckle Plate (Type US)
