We are pleased to introduce the second collaborative charger developed with Hitec, the market leader in RC charging technology — the X1 NANO USB Plus!
Despite its ultra‑compact size of 70 × 50 × 32 mm and a weight of only 82 g, this charger delivers exceptional power:240 W when powered via DC・126 W when powered via PD・Maximum charging current: 10.0 A

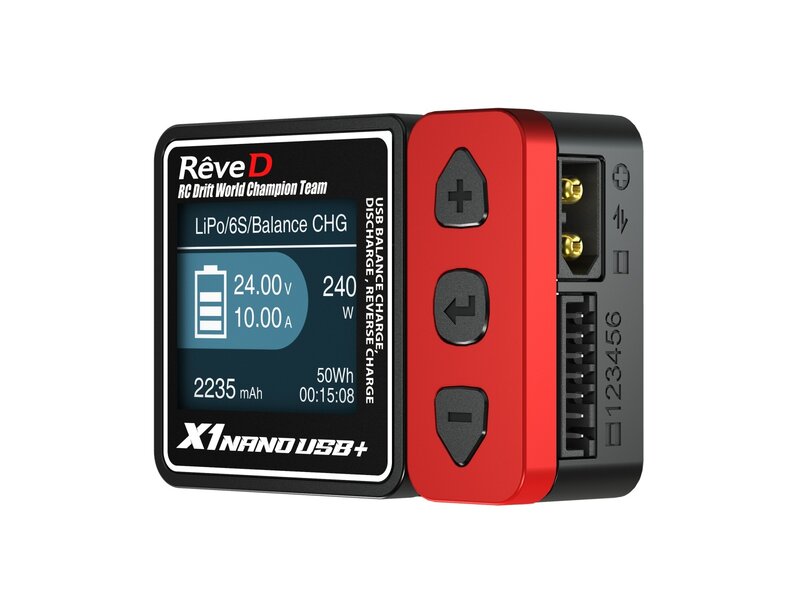

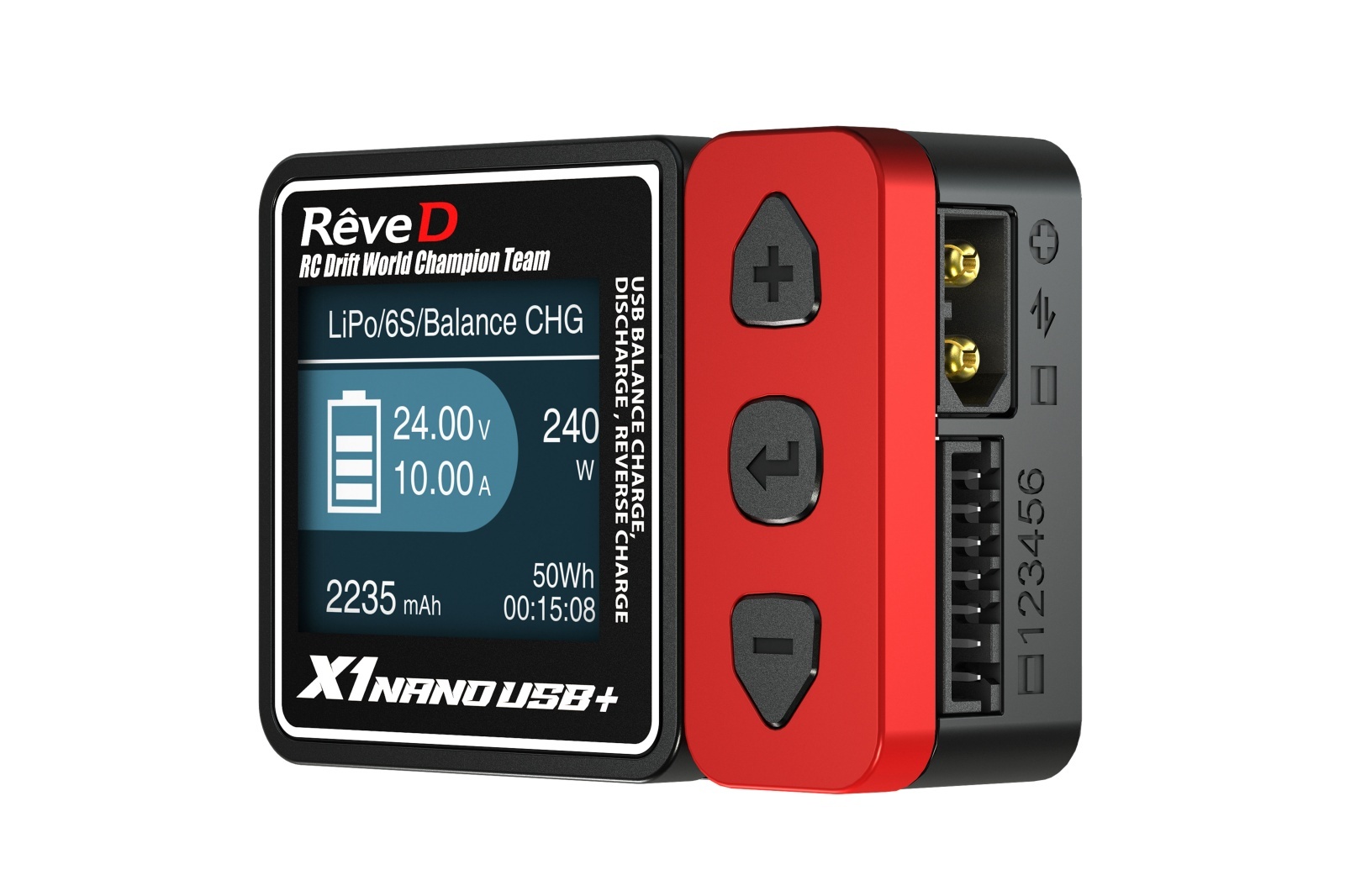

Operation is intuitive using the three buttons located on the right side of the unit, and all settings as well as charge/discharge status can be monitored through the LCD display.
Supported battery types include Li-Po, Li-Fe, Li-HV, Ni-MH, and Ni-Cd — commonly used in RC applications — as well as Li-Ion and PB (lead-acid batteries) used in full-size vehicles.
The charger also features a discharge mode and a reverse charging function that allows you to power devices such as smartphones from a charged battery (up to 100 W).
Packed with functionality in a compact body, the X1 NANO USB Plus is the perfect addition to your pit setup.
Don’t miss the chance to experience its performance.
Note:
A separate DC power supply or a PD power source of 65 W or higher, along with the appropriate charging cable for your battery type, is required for proper operation.
Product specifications:
- Dimensions: 70mm x 50mm x 32mm
- Weight: 82g
- Suitable batteries: Li-Po, Li-HV, Li-Fe, Li-Ion, Ni-Cd, NiMH, PB
- Input voltage: DC: 5V~30.0V / PD 3.0 / 3.1: 5~28.0V
- Input current: DC: 12A (+-1A) / PD: 5A (+-1A)
- Maximum output power: DC: 240W (+-10%) / PD: 126W (+-10%)
- Charging current: 0.3A~10.0A
- Discharge current: 0.6A (+-2A) Maximum power: 16W (+-10%)
When using 6 cells (4.2V/cell) ※Connection to both the main port and balance port is required. - Balance charging: Max 600mA (Li-Po / Li-Fe / Li-Ion / Li-HV)
- Reverse charging: Max 100mA (+-10%)
Customer support for this product is handled by Hitec.
Please contact Hitec Customer Support regarding product inquiries, repairs, and related matters.
